Advanced Diagnostic Tool Online Programming Tool

Name: Advanced Diagnostic Tool Online Programming Tool
Brand: Unique-Boutique
Price: 23.00 GBP
Availability: InStock

£23.00 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

Description

TOPDON PHOENIX MAX WITH 2-YEAR OF FREE SOFTWARE UPDATES

The Phoenix Max is TOPDON's newest cutting-edge automotive diagnostic scanner. With a 13.3" screen, this all-in-one tool offers a wide array of functionalities that will expand any technician's capacity to complete even more jobs. The Phoenix Max includes a 4-channel oscilloscope, ADAS compatibility, and Topology Mapping that shows all car systems in one view. Its updated MDCI (Modular Diagnostics and Communication Interface) includes the latest protocols, allowing professionals to perform more complex repairs on various automotive and heavy-duty vehicles with optional add-on software.

The differences on TOPDON PHOENIX SERIES products:

★ For the software updates, only Phoenix SMART/MAX comes with 2-year free software updates.

★ For the top functions, Phoenix SMART/MAX can do Cloud-based programming on up to 13 car bands, PLUS/LITE2 cannot.

★ For the online FFS activation on VW&Audi, Phoenix SMART/MAX/ELITE can do, Phoenix PLUS/LITE2 cannot.

★ For the DTC guided functions on Mercedes-Benz, BMW, Porsche, Audi, VW, Phoenix SMART/ MAX can do, Phoenix ELITE/PLUS/LITE2 cannot.

★ For the Oscilloscope, Phoenix MAX comes with the 4-CHANNEL oscilloscope, others are required to pay extra if needed.

★ For the heavy-duty compatibility, Phoenix SMART/MAX can do, but HD software upgraded & HD connector kit require purchase if needed, others do not support heavy-duty diagnostics.

★ For the memory ROM, Phoenix SMART comes with much more in 128GB, Phoenix MAX comes with the biggest ROM 256GB, and the others (ELITE/PLUS/LITE2) are less than 64GB.

★ For the screen size, Phoenix MAX comes with the largest of 13.3-inch, SMART/ELITE/PLUS are 13-inch.

★ For the communication of wireless Bluetooth connector, Phoenix SMART/MAX are MDCI PRO, protocols including CANFD, DOIP, D-PDU, J2534, RP1210, Phoenix ELITE is MDCI only with CANFD, Phoenix Plus is VCI Dongle, no protocols included.

Highlights:

★ Our this scanner PHOENIX MAX comes with 2 years of FREE software updates.

★ We provide a 1-year extended warranty, no worry about shopping.

★ We are 24/7 online tech support from our official technicians' team, helping solve problems shortly.

★ Our scanner can be used in global regions, including the US, EU, ASIA, and more. No ip limit.

Features:

✅ Get More Done - Heavy Duty Optional

The Phoenix Max includes 2 years of automotive updates and HD software can be added for an additional fee, making it an all-in-one tool.

✅ Cloud-Based Programming on 13+ Car Brands

✔ Audi Guide Function, Personalization, Module Programming

✔ BMW Coding, Initialization, Personalization (E & F series) module programming, DTC repair guide

✔ Land Rover/Jaguar Module Programming

✔ Mercedes Benz Module programming, SCN Coding

✔ Nissan Module Programming

✔ Porsche Module Programming, Personalization

✔ Toyota Personalization

✔ Volkswagen Guide Function, Personalization, Module Programming

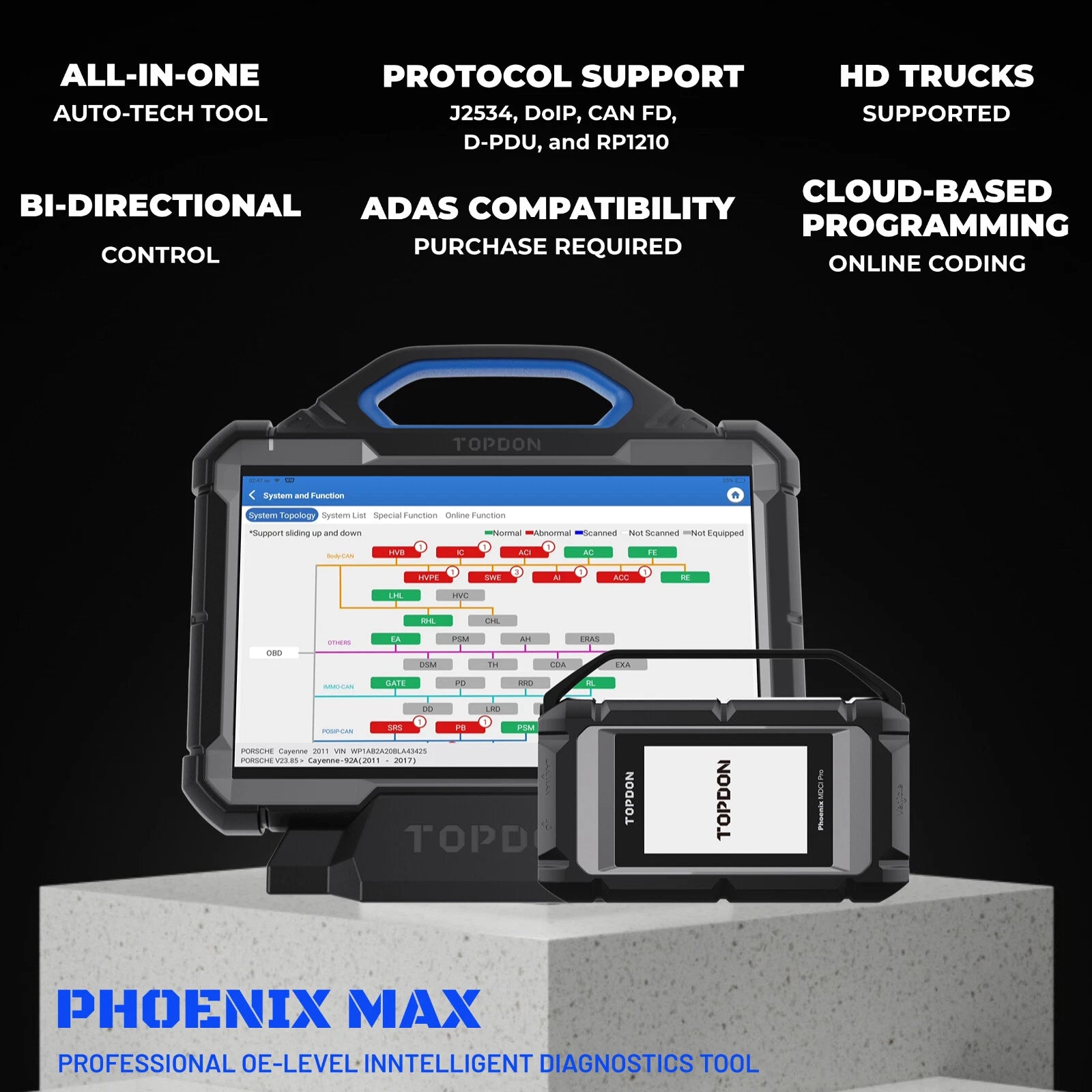

✅ The Phoenix MDCI Pro Has You Covered

TOPDON’s Phoenix Max comes with the Phoenix MDCI Pro, a VCI that supports J2534, DoIP, CanFD, D-PDU, and RP1210 protocols. This MDCI Pro’s unparalleled coverage allows you to offer OE-level services to newer and more modern vehicles. With the Phoenix MDCI Pro, you will never be forced to outsource!

✅ Big Display for Big Productivity

Featuring a large 13.3”, 1920 x 1200 display, 8G RAM/256G ROM, and Android 9, the Phoenix Max will take on whatever you throw at it with fast and smooth operation.

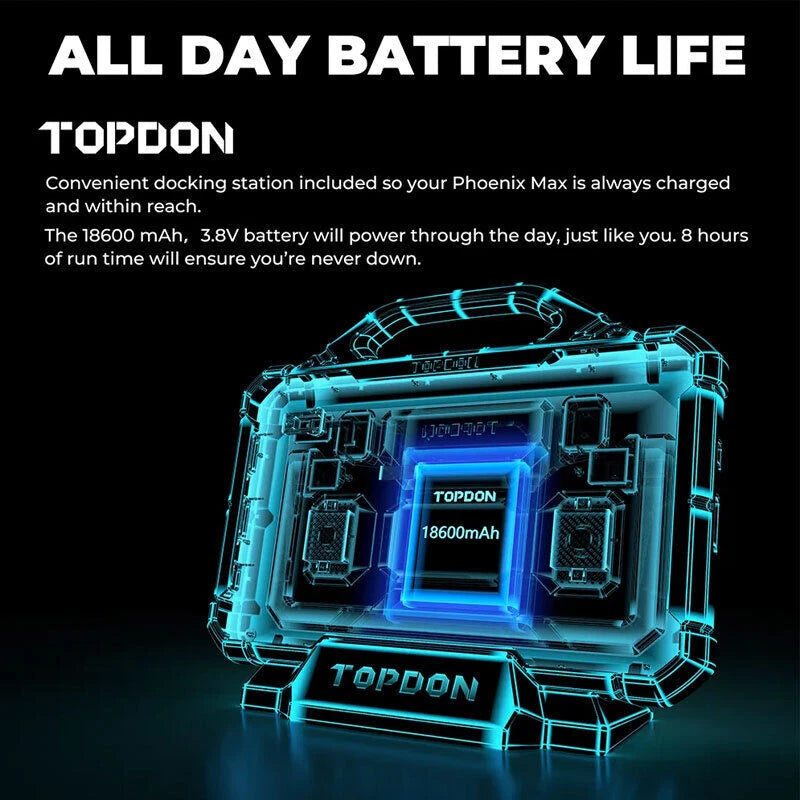

✅ All-day Battery Life

A convenient docking station is included, so your Phoenix Max is always charged and within reach.

The 18600 mAh, 3.8V battery will power through the day, just like you. 8 hours of run time will ensure you’re never down.

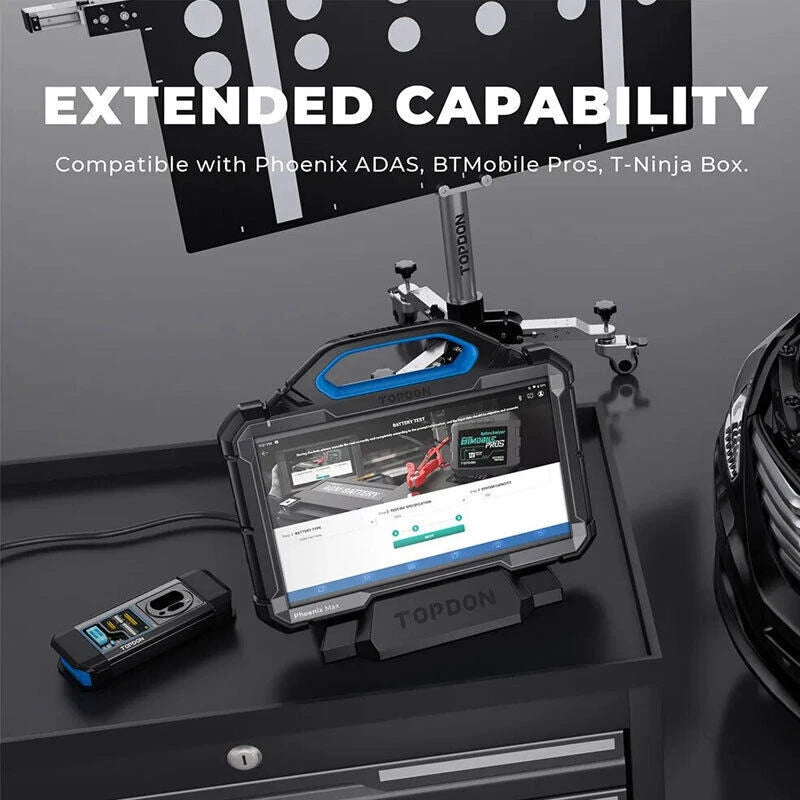

✅ Extended Capability

Compatible with Phoenix ADAS, BTMobile Pros, and T-Ninja Box.

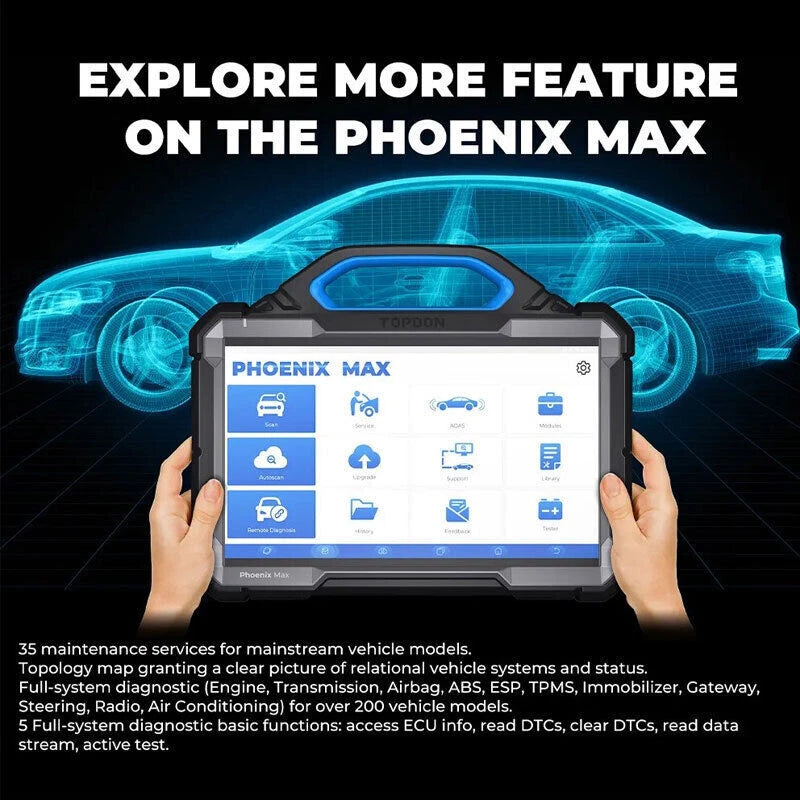

✅ Explore More Features On the Phoenix MAX

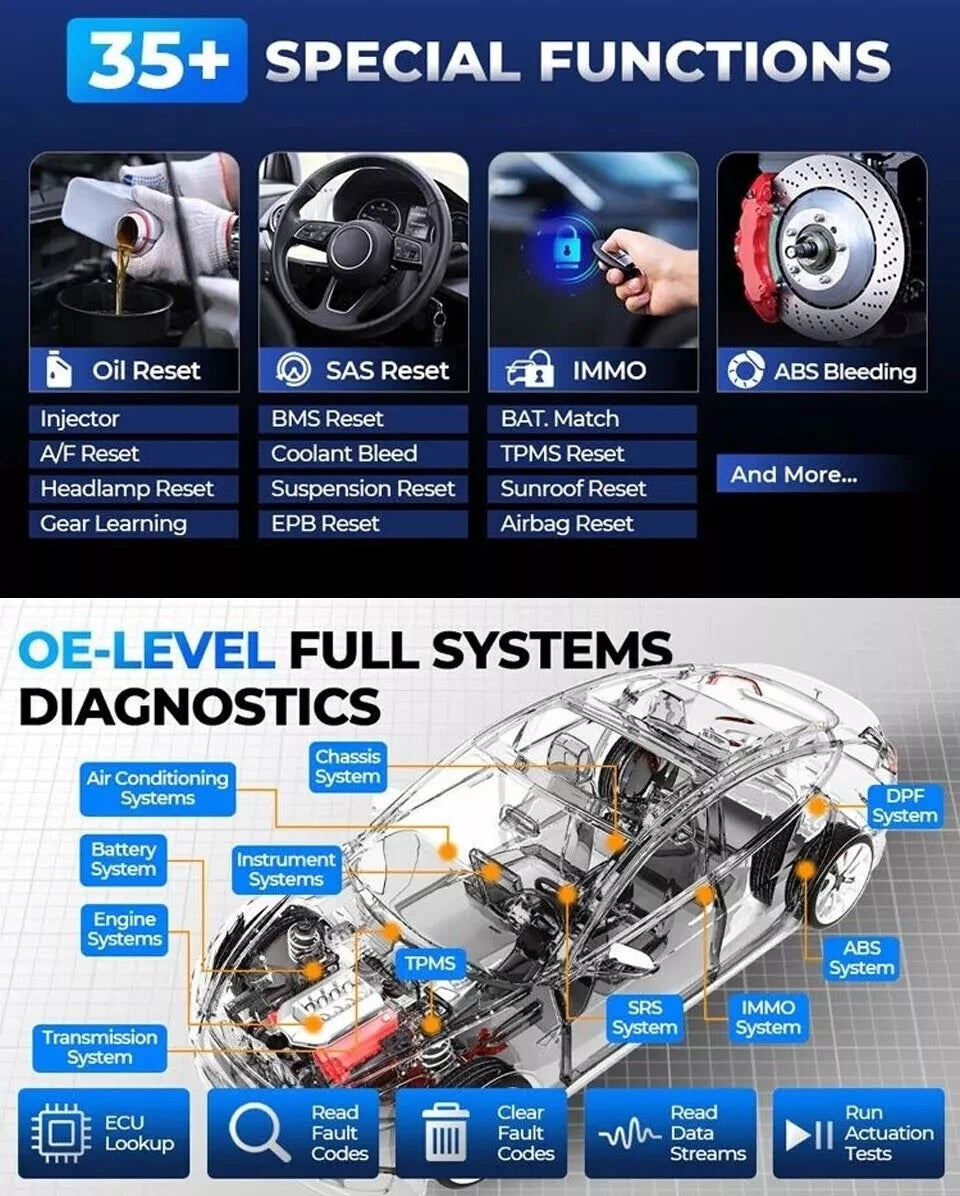

✔ 41 maintenance services for mainstream vehicle models.

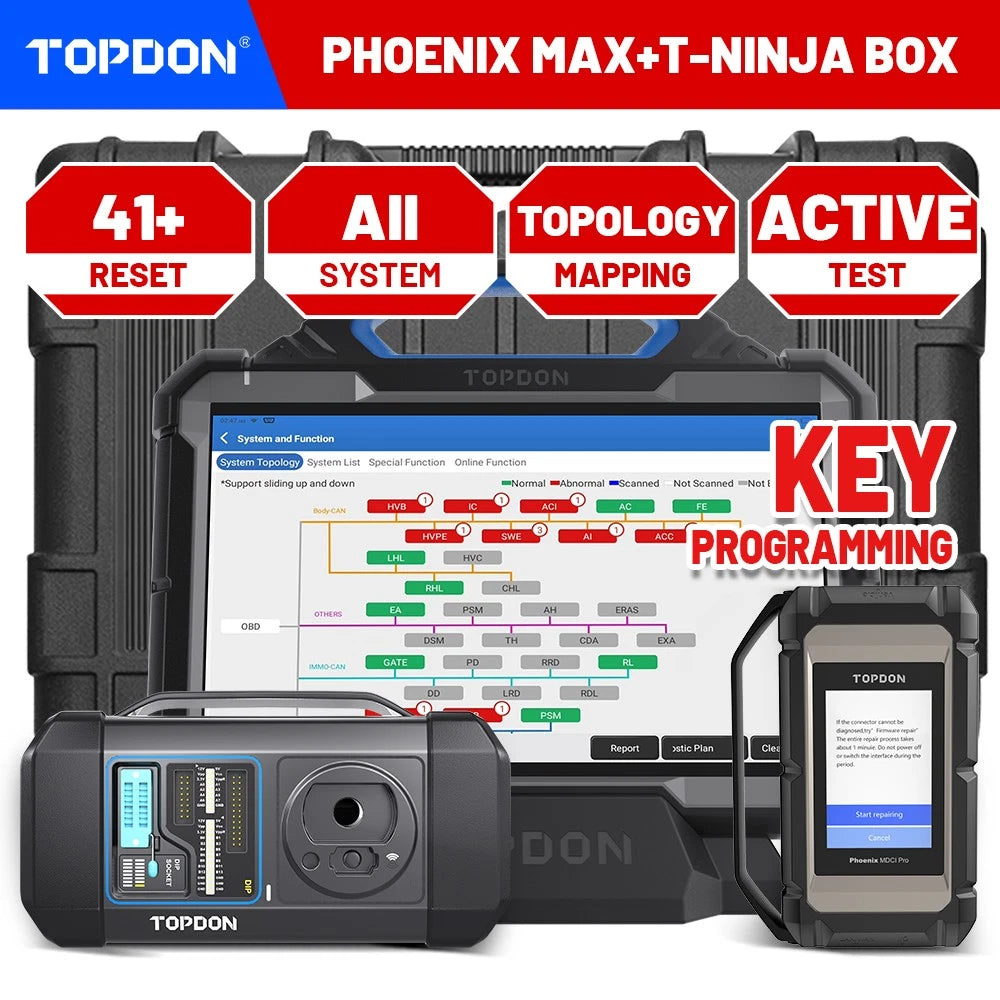

✔ Topology map granting a clear picture of relational vehicle systems and status.

✔ Full-system diagnostic (Engine, Transmission, Airbag, ABS, ESP, TPMS, Immobilizer, Gateway, Steering, Radio, Air Conditioning) for over 200 vehicle models.

✔ 5 Full-system diagnostic basic functions: access ECU info, read DTCs, clear DTCs, read data stream, active test.

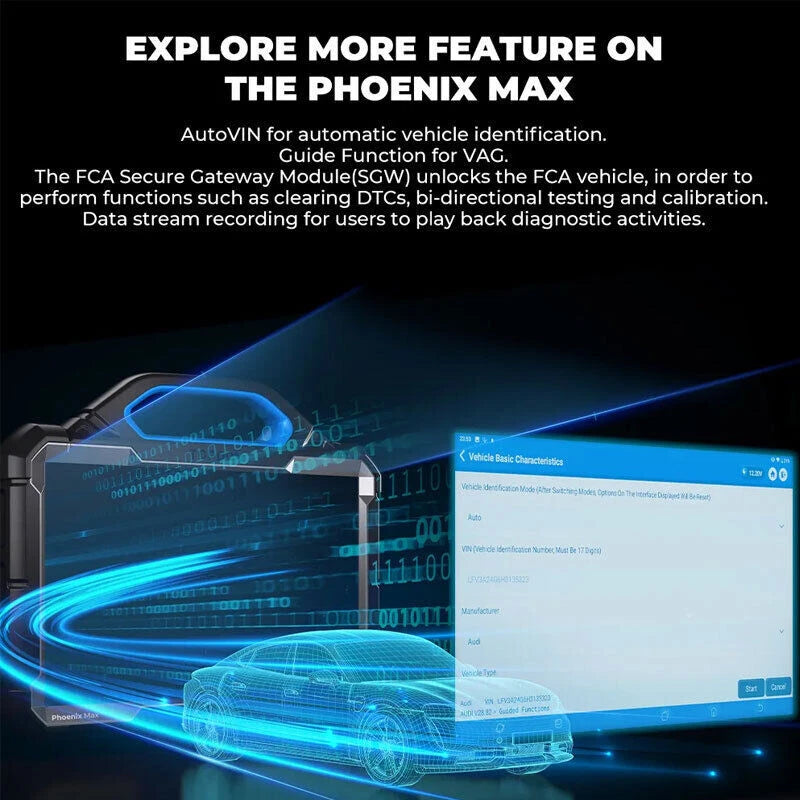

✔ AutoVIN for automatic vehicle identification.

✔ Guide Function for VAG.

✔ Data stream recording for users to play back diagnostic activities.

Specifications on PHOENIX MAX:

Display: LCD 13.3 inches, 1920 x 1200 pixels

CPU: 8-Core Processor, 2.0 GHz, Android 9.0

RAM: 8G

ROM: 256G

Battery: 18600 mAh / 3.8V

Operating Voltage: 9~18V

Storage Temperature: -20℃~60℃（-4℉~140℉）

Working Temperature: 0℃~50℃（32℉~122℉）

Product Dimensions: 364 x 285 x 82mm (14.30 x 11.20 x 3.20 inches)

Package Dimensions: 673 x 474 x 201mm (26.50 x 18.66 x 7.91 inches)

Net Weight: 3.18kg(7.0 lb)

Multilingual Support: 24 Languages

English, German, Spanish, French, Italian, Japanese, Portuguese, Russian, Polish, Turkish, Dutch, Hungarian, Chinese (Traditional), Korean, Finnish, Greek, Slovak, Romanian, Arabic, Croatian, Slovenian, Czech, Danish, Norwegian

Specifications on PHOENIX MDCI PRO:

CPU: Cortex-A7 + Cortex-M7, Dual Processor

Operating System: Linux

RAM: 256M

ROM: 8G

Display: TFT, 3.97 inches, 320 x 480 pixels

Wi-Fi: 2.4GHz/5GHz, Dual Band

Working Temperature: 0℃~50℃（32℉~122℉）

Operating Voltage: DC 9~36 V

Dimensions: 196 x 135 x 42.8 mm（7.72 x 5.31 x 1.69'')

New Protocols Supported: J2534, CAN FD, DOIP, D-PDU, RP1210

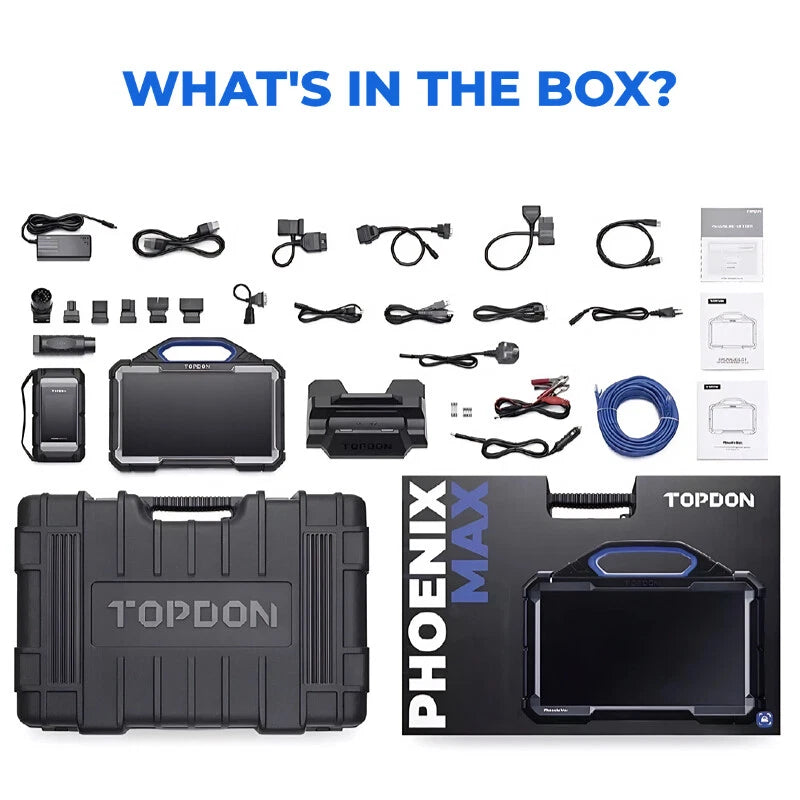

Package:

Phoenix Max

Base/docking station

Phoenix MDCI PRO

MDCI PRO CAB Male to Diagnostic Cable

Clipper Cable ( LCDSS )

Fuse ( AC250V/5A, φ5x20mm ) * 4

MDCI PRO CAB Type A to B Cable

Cigarette Lighter Cable

Fuse ( AC250V/5A, φ6x30mm ) * 2

BZ-38 ( BENZ )

TA-17 ( TOYOTA )

B-20 ( BMW )

HA-3 ( HONDA )

OBD I Adaptor

Charging Cable

TA-22 ( TOYOTA )

G/V-12 ( GM/VAG )

CR-6 ( CHRYSLER )

NN-14+16 ( NISSAN )

M/H-12+16 (MITUBISHI/HYUNDAI)

Adaptor

AC Cable (US）

Mini-HDMI to HDMI

3-in-1 Charger (Matched with U.S., U.K. and Europrean plugs)

FT-3 (FIAT）

AC Cable (EU)

AC Cable (UK)

Type A USB to Type C

Ethernet Cable

_______________________________________________________________________________________________________________________

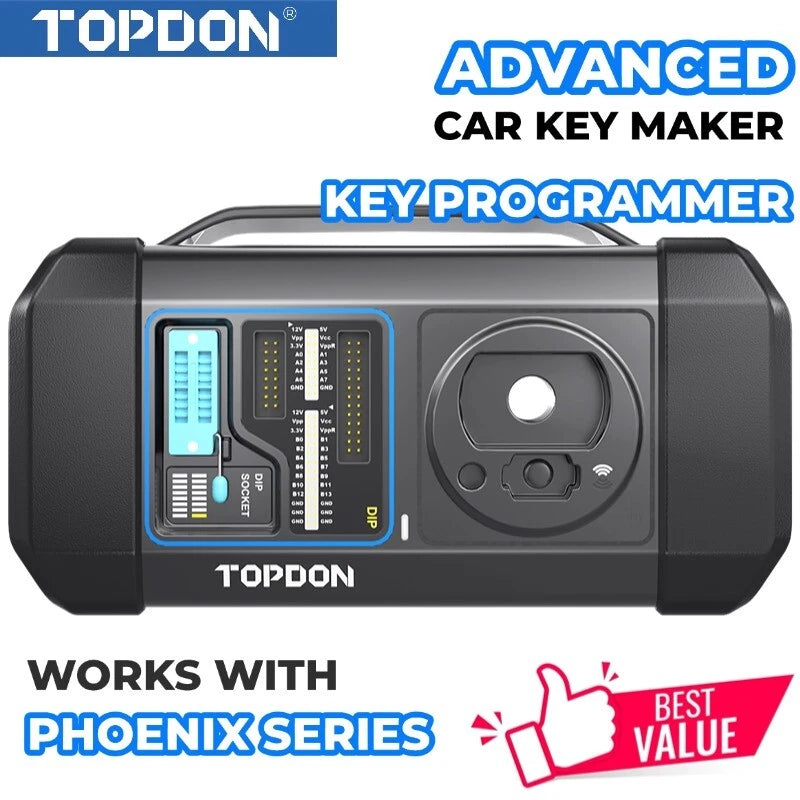

The T-Ninja Box is TOPDON's newest programming tool for car keys & the immobilizer system. This powerful tool allows users to read and write key chip data, generate special keys, and more!

This easy-to-use tool offers a simple and intuitive connection with no binding needed! This advanced programming device works on the most common IMMO systems, such as Engine, Automatic Transmission, Instrument, CAS, Body, and Lock Systems.

With the T-Ninja Box, you get comprehensive vehicle coverage of US, Euro, and Asian brands, such as VW/Audi, BMW, Mercedes-Benz, Toyota, and others. The chip reader and programming tool is compatible with the most common ECU, MCU, and EEPROM Manufacturers (Atmel, ST, MicroChip, Renesas R32C, NEC, and much more).

Coverage & Functions:

✔ Mercedes-Benz infrared key matching, lock reading and writing

✔ MB gearbox computer renew, ECU cloning, FDCT and 9-speed gearbox computer copy

✔ BMW DME replacement matching or copy, IMMO system replacement matching, key matching, transmission computer wiping and more.

✔ Volkswagen and Audi MQB platform vehicles' engine replacement

✔ Reading and writing the 4th generation of Volkswagen UDS engine chip

✔ Instrument and steering column replacement (Unnecessary to access the original engine data. It can be read directly from the key instead.)

✔ 4th generation Audi EZS, comfort control module, and KESSY chip replacement. (Available even if all keys are lost.)

✔ 5th generation Audi gearbox replacement

✔ Supports more than 170 Bosch and 20 Siemens engine ECUs, 20 kinds of transmission ECU-free shell BENCH mode copy

Continuous Upgrades & Support:

✔ TOPDON constantly updates its database to include more vehicle models and new functions.

✔ TOPDON also offers timely and high-quality technical support to assist customers when performing complex functions with their tools.

✔ Tech support agents are always ready to provide up-to-date and clear operating instructions and guide users through any technical issues.

✔ The T-Ninja Box is compatible with the Phoenix Series of Scanners, the perfect add-on tool to further expand your diagnostic capabilities!

Features:

✅ Your Choice For Compatibility & Coverage

With the T-Ninja Box, you get the most Comprehensive Vehicle Models Database of US, Euro, and Asian brands, such as Volkswagen, Audi, Skoda, SEAT, BMW, Mercedes-Benz, Toyota, and others. This cutting-edge programming tool is compatible with the most prominent ECU, MCU, and EEPROM Manufacturers. Its coverage includes Atmel, ST, MicroChip, Renesas R32C, NEC, and much more.

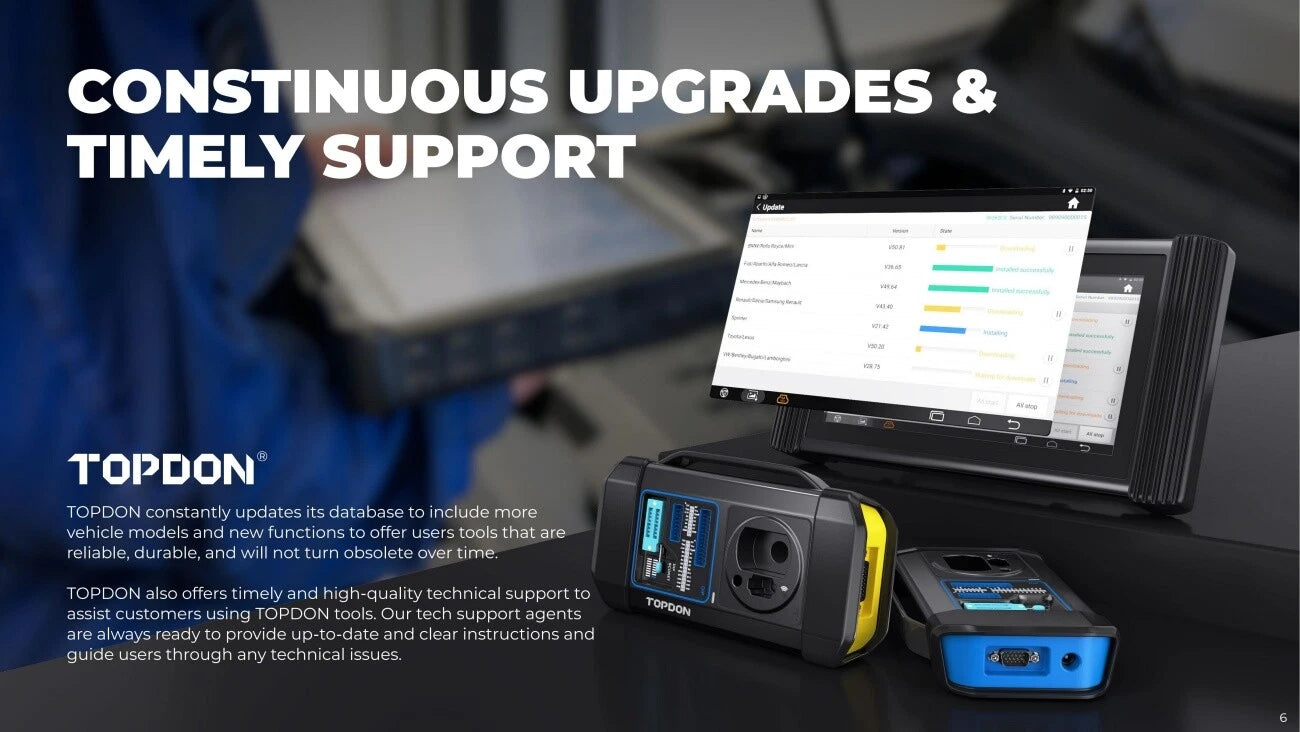

✅ Continuous Upgrades & Timely Support

TOPDON constantly updates its database to include more vehicle models and new functions to offer users tools that are reliable, durable, and will not turn obsolete over time.

TOPDON also offers timely and high-quality technical support to assist customers when performing complex functions with their TOPDON tools. Our tech support agents are always ready to provide up-to-date and clear operating instructions and guide users through any technical issues.

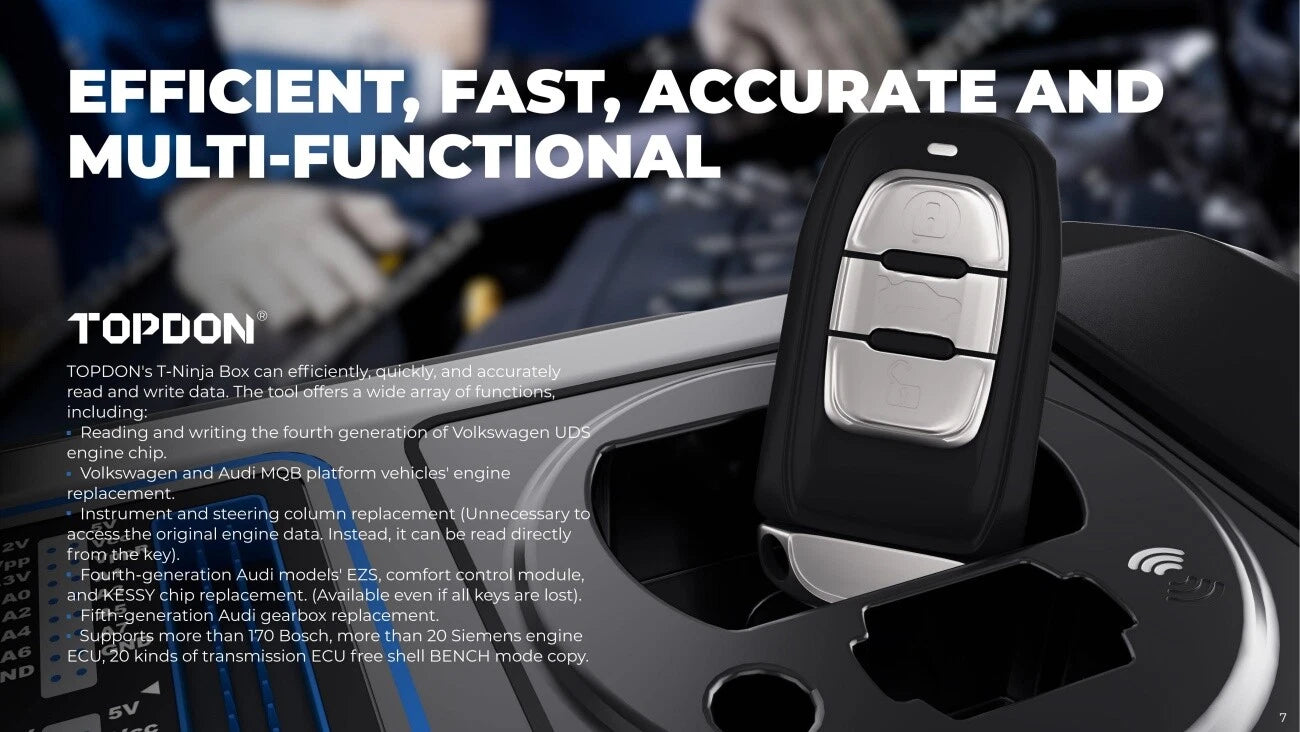

✅ Efficient, Fast, Accurate And Multi-Functional

Reading and writing the fourth generation of Volkswagen UDS engine chip.

Volkswagen and Audi MQB platform vehicles' engine replacement.

Instrument and steering column replacement (Unnecessary to access the original engine data. Instead, it can be read directly from the key).

Fourth-generation Audi models' EZS, comfort control module, and KESSY chip replacement. (Available even if all keys are lost).

Fifth-generation Audi gearbox replacement.

Supports more than 170 Bosch, more than 20 Siemens engine ECU, 20 kinds of transmission ECU free shell BENCH mode copy.

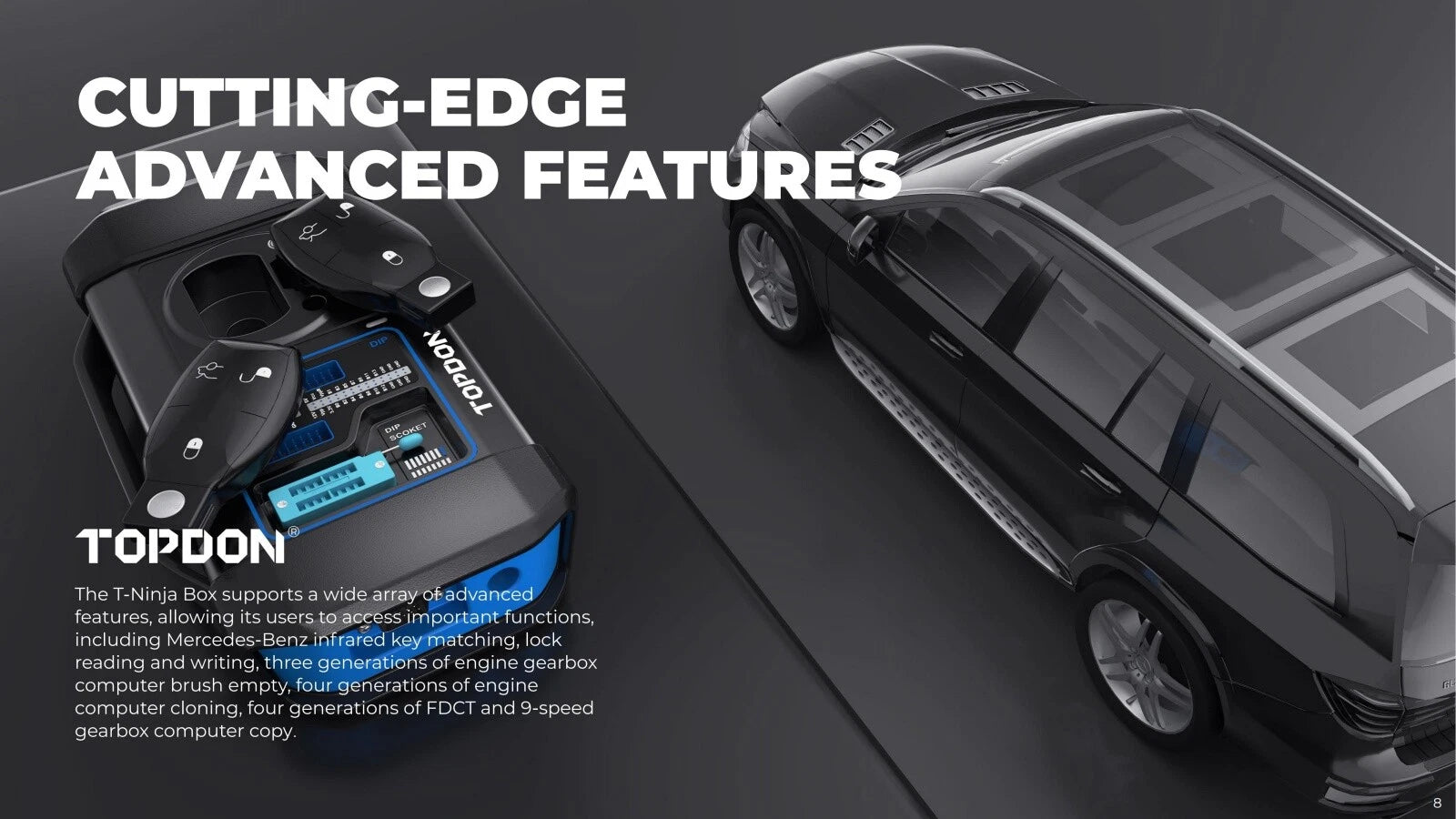

✅ Cutting-Edge Advanced Features

The T-Ninja Box supports a wide array of advanced features, allowing its users to access important functions, including Mercedes-Benz infrared key matching, lock reading and writing, three generations of engine gearbox computer brush empty, four generations of engine computer cloning, four generations of FDCT and 9-speed gearbox computer copy.

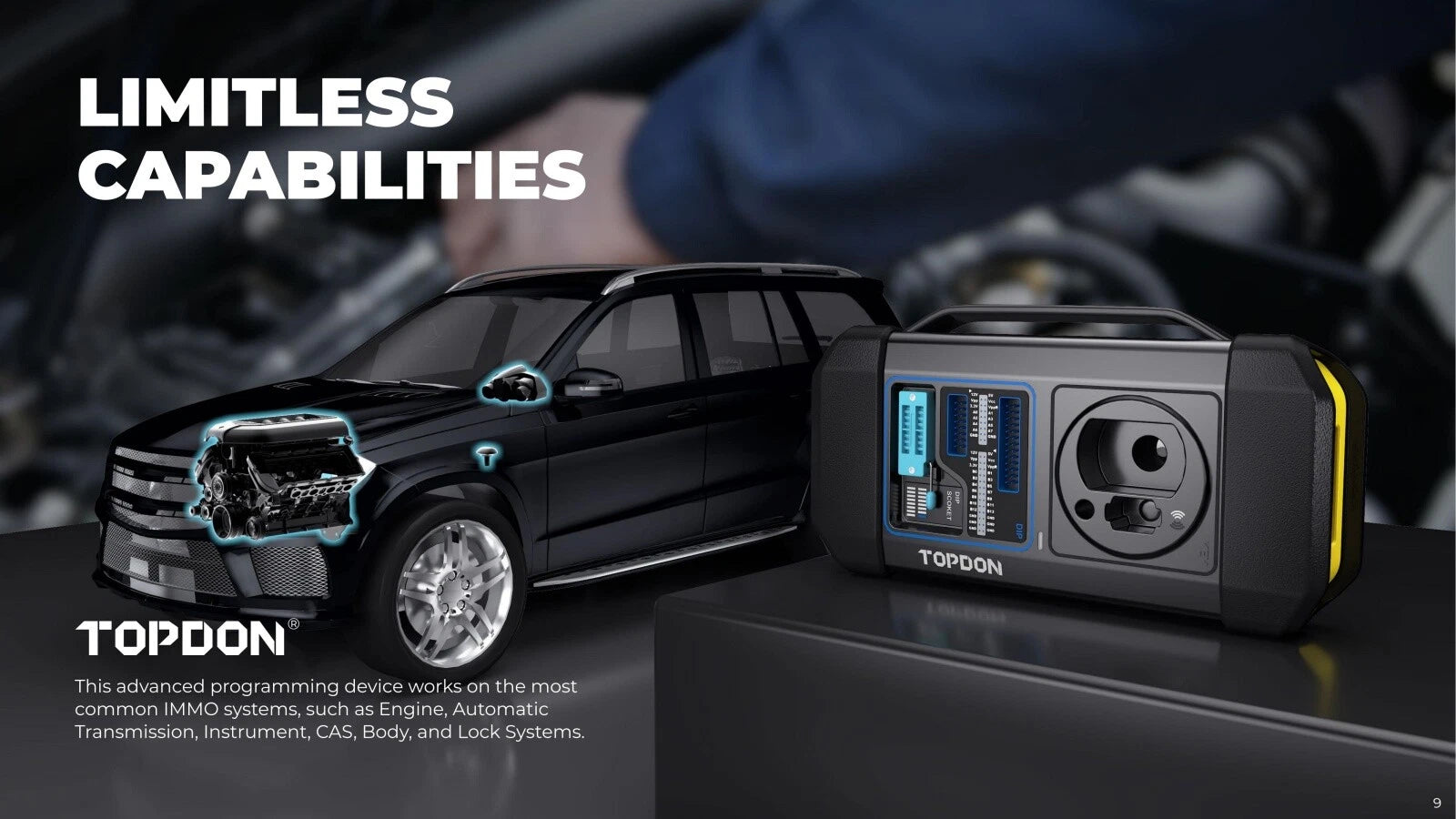

✅ Limitless Capabilities

This advanced programming device works on the most common IMMO systems, such as Engine, Automatic Transmission, Instrument, CAS, Body, and Lock Systems.

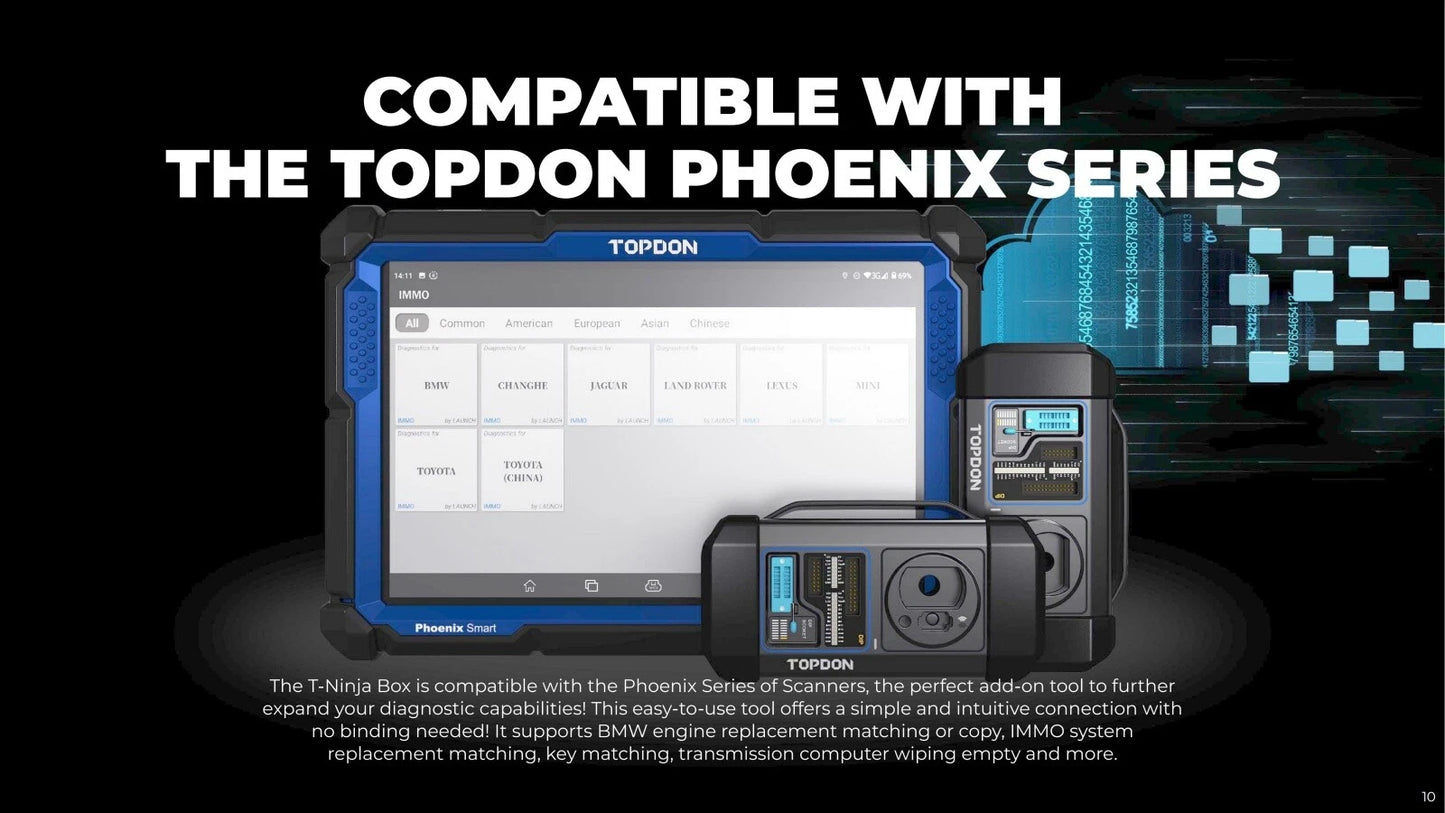

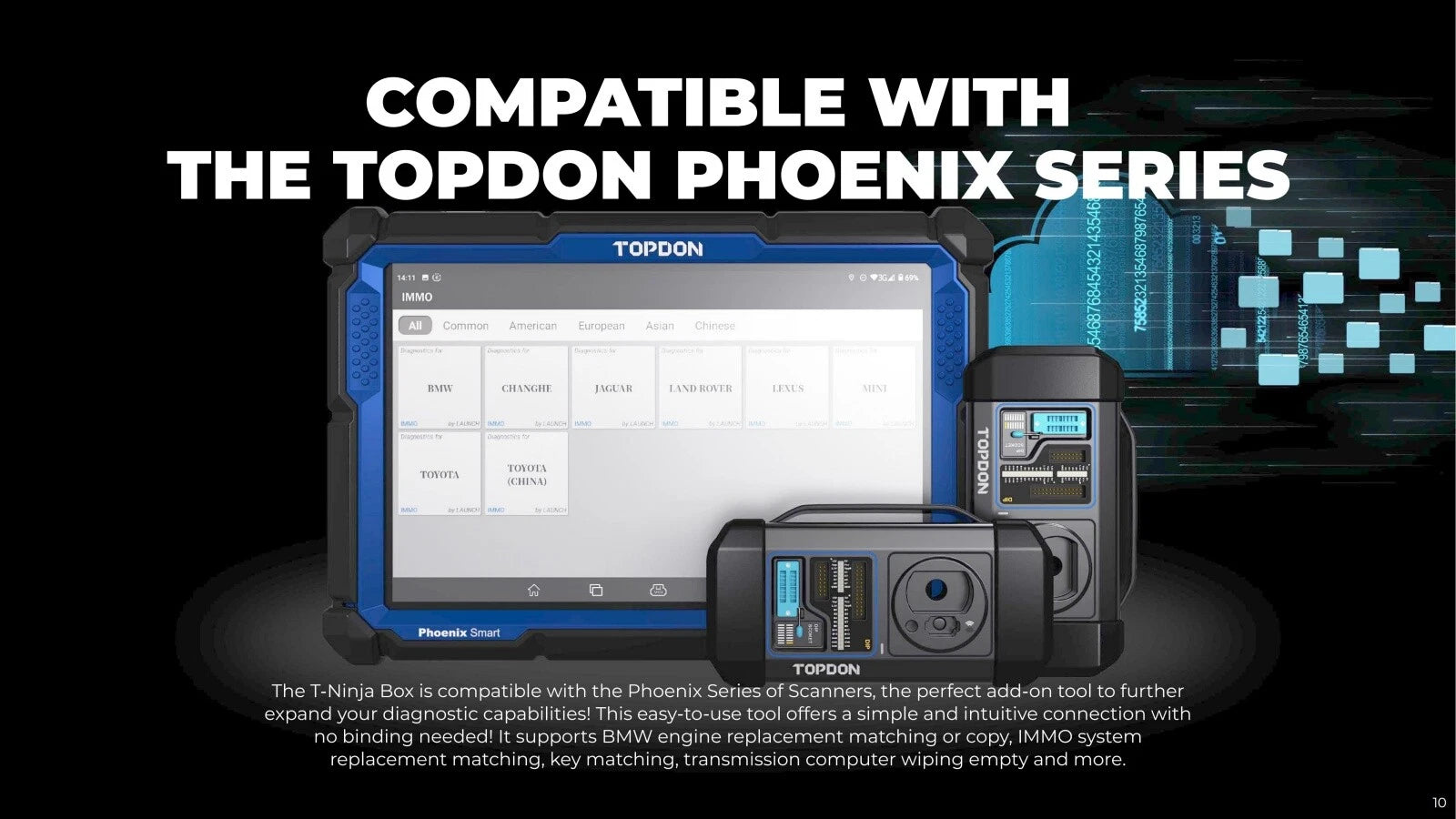

✅ Compatible With The TOPDON Phoenix Series

The T-Ninja Box is compatible with the Phoenix Series of Scanners, the perfect add-on tool to further expand your diagnostic capabilities! This easy-to-use tool offers a simple and intuitive connection with no binding needed! It supports BMW engine replacement matching or copy, IMMO system replacement matching, key matching, transmission computer wiping empty and more.

Package:

• T-Ninja Box

• Main Cable

• XTA001

• mcu 1

• mcu 2

• EEPROM

• MB key

• INS Cable V1

• INS Cable V2

• MCU Cable V1

• Bench Mode Cable
